Thickness 0 , 4 - 0 , 8mm 20 Forming Roof Panel Roll Forming Machine
Profile Drawing
General Parameter
| | Item | Parameters |
| 1 | Type | YX66-470 |
| 2 | Thickness | 0.4-0.8mm |
| 3 | Forming Speed | 20 m/min |
| 4 | Forming station | 20 steps |
| 5 | Main Motor Power | 5.5 KW |
| 6 | Hydraulic Power | 4 KW |
| 7 | Shaft | 75mm |
| 8 | Weight | about 9T |
Main features
The advantages of roof panel machine are as follows:
1.Low cost, light weight but high strength, short building period, and re-cycle use
2.Save material ,no waste.
3.Easy operation, low maintenance cost
4.Able to deal with stainless material

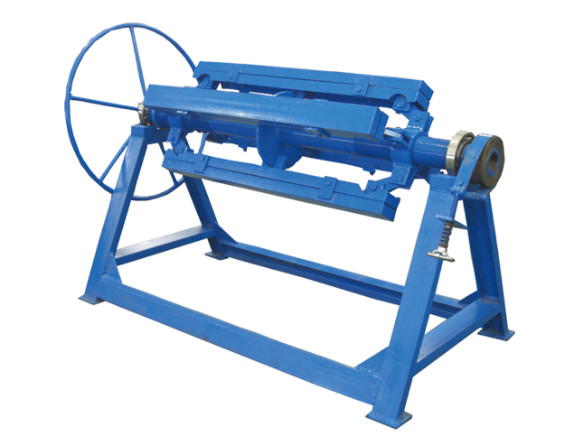

Decoiler
Manually decoiler: one set.Un-powered,manually control steel coil inner bore shrinkage and stop
Max feeding width: 1200mm, coil ID range 508mm+30mm,Max capacity: 5-9T
With 6 Tons hydraulic decoiler for option
Main Machine
With feeding material guide,avoid wasting material.
Suitable for material with thickness:0.4-0.8mm.Body frame made from H450 type steel by welding.
Rollers manufactured from high quality 45# steel, CNC lathes, Heat Treatment,Hard Chrome Coated. with black treatment or Hard-Chrome Coation for options.
Main shaft diameter=φ75mm round steel, precision machined Motor driving, Gear chain transmission, 20 steps to form. Main motor=5.5KW, Frequency speed control.Forming speed approx.20m/min
Made by high quality mold steel Cr12MoV,with heat treatment,HRC58-62
Cutter frame made from high quality 20mm stell plate by weilding Hydraulic motor: 4KW, Hydraulic pressure range: 0-16Mpa
Protection Cover
PLC Control System
Control the quantity and cutting length automatically.Input the production date(production batch,Pcs,length,etc.)on the touch screen.
It can finish the production automaticlly Combined with: Plc. Inverter. Touch Screen. Encoder. etc.
Cut-to-length tolerance≤±2mm.Control Voltage 24V.
Exit Rack
Un-powered,three units
Packing Style
Packing method: Main body of machine is naked and covered by plastic film(to protect of dust and corrosion),loaded into container
and steadily fixed in container suitable by steel rope and lock, suitable for long-distance transportation.
After-sale service
1. The warranty is 24 months after the client receives the machine Within 24 months, we will courier the replacement parts to the client free of charg.
2. We offer technical support for the entire life of our machine .
3. We can send our technicians to install and train the workers in the clients factories with extra cost.
Terms of trade
1. Minimum order quantity (MoQ): 1
2. Delivery time: about 45 workdays
3. Port of loading: port of Xiamen
4. Type of payment: by T/T or by L/C
5. Export: to more than 50 countries and regions,including Taiwan,UK, France,Singapore,Greece,Australia,USA,Mexico,Brazil,Chile, Bolivia, Trinidad,Israel,Saudi Arabia,etc.
